Rotativo, óptica ámbar 12/24V
19780-03
- Width:
- 149
- Depth:
- 149
- Height:
- 112
- NetWeight:
- 0.51
Todas las dimensiones son en mm y todos los pesos en kg.

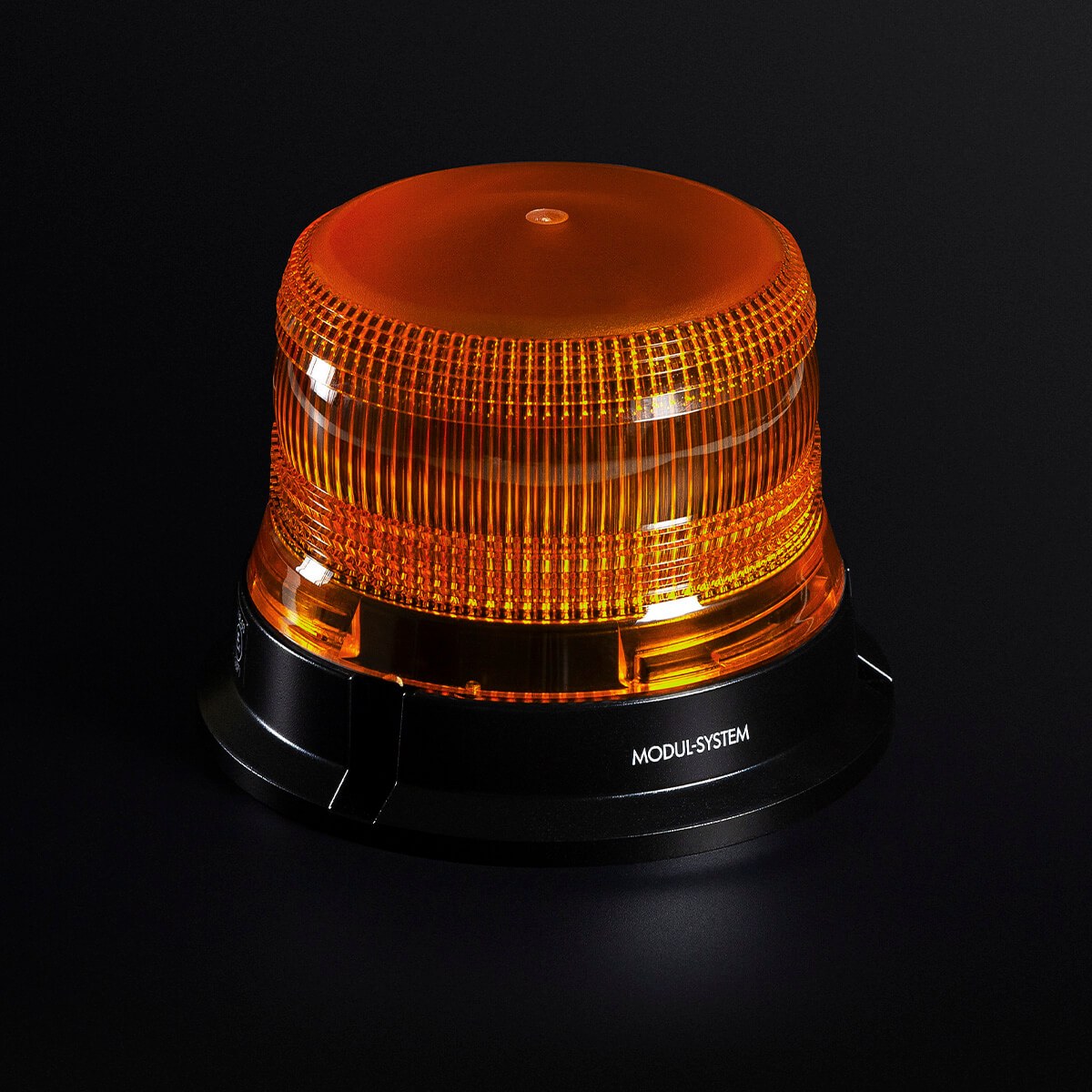

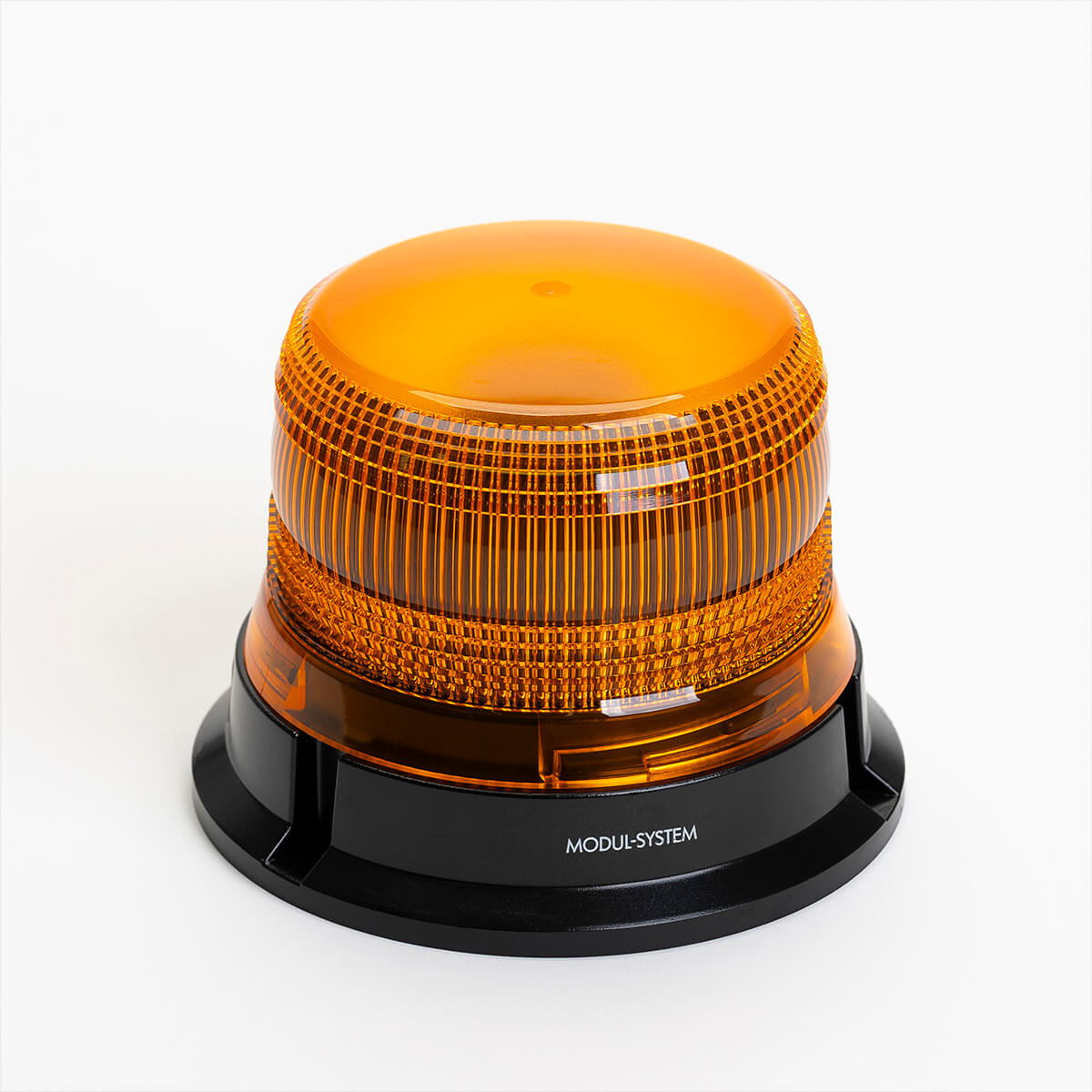

Premium LED beacon with three-point fixing to the vehicle roof. Beacon adapters (available separately) will facilitate one-point fixing, or mounting to roof rack.
Voltage: 10-30 Vdc
Amp draw: 0.1A (1A peak)
LED: 12 pcs 1W LED
Lens color: Amber
LED color: Amber
Flash pattern: 13 pcs (incl. rotating)
Synchronization: ≤ 6 pcs
IP: IP65
Certification: ECE R65 class 1, ECE R10
Voltage: 10-30 Vdc
Amp draw: 0.1A (1A peak)
LED: 12 pcs 1W LED
Lens color: Amber
LED color: Amber
Flash pattern: 13 pcs (incl. rotating)
Synchronization: ≤ 6 pcs
IP: IP65
Certification: ECE R65 class 1, ECE R10
- Área Frontal (m2):
- 0.013
Modul-Connect compatible
